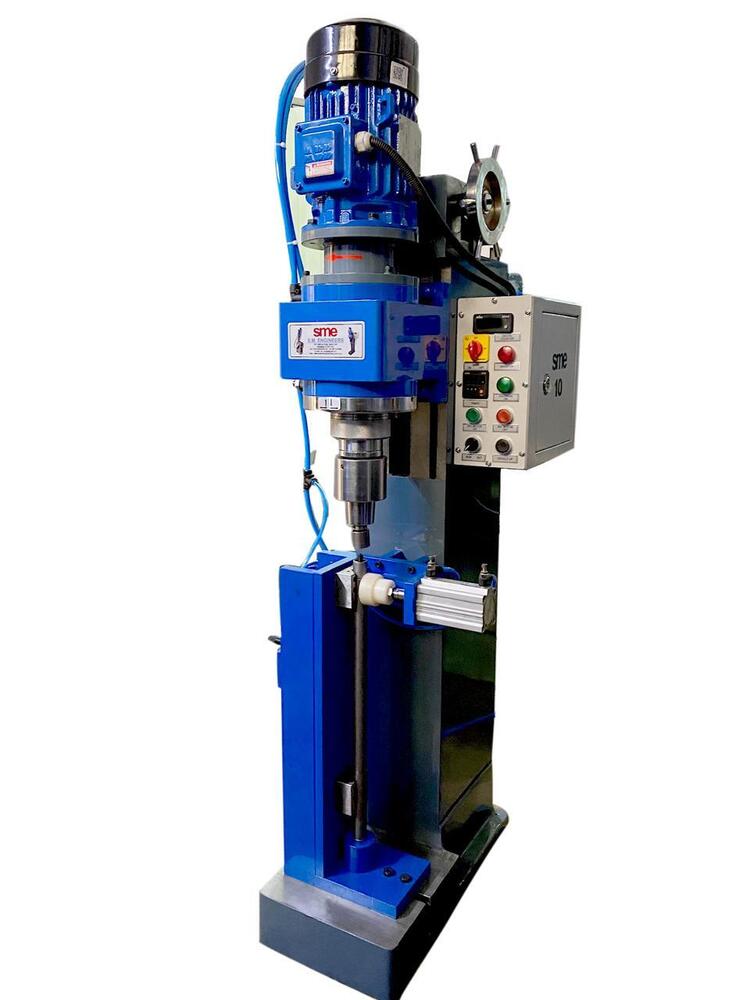

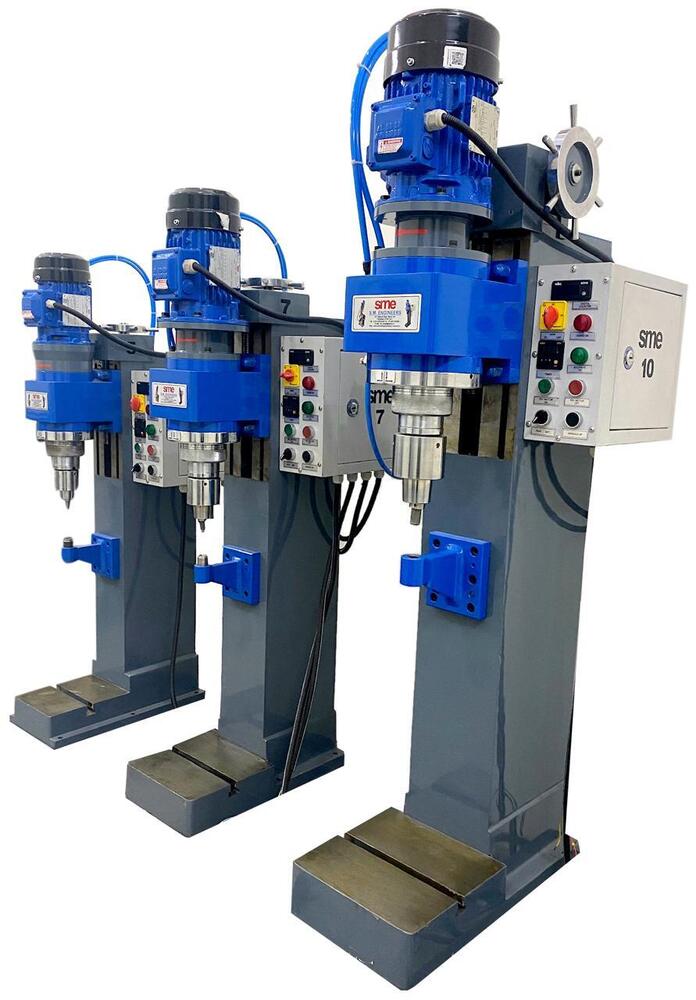

Modular in nature, our cookware riveting machine is designed for ultra-flexibility. This machine is excellent in terms of control, power and efficiency, suitable for most cookwares. It is good for fast cycle, precision, and repeatability in multiple applications. The powerful riveting machine offers great riveting capacity along with easy adjustments. It shows an excellent ratio of productivity, price and application range. Also, there is a right mix of latest riveting technology, reliable components and trusted method. Strong structure, compact design and reduced vibration make it a perfect cookware riveting machine.
Technical Specifications:
Model No. |
Riveting Capacity (MS)up to |
Throat Depth |
Shut Height (max) |
Stroke Adjustment |
Axial Force |
Cycle time Adjustment |
Base Area (Working) |
Machine Size |
Motor (H.P) 3Ph.415V-1400 RPM |
Air Pressure |
RIV5-U |
5mm |
125mm |
For utensils up to 18 Inch Dia |
30mm |
300 kgs |
0-9.99 secs |
200x250 |
250x500x1275 |
0.50 |
5-6kg/cm2 |
RIV7-U |
7mm |
125mm |
For utensils up to 21 Inch Dia |
35mm |
500 kgs |
0-9.99 secs |
200x250 |
250x520x1350 |
0.50/0.75 |
5-6kg/cm2 |
