Product Description

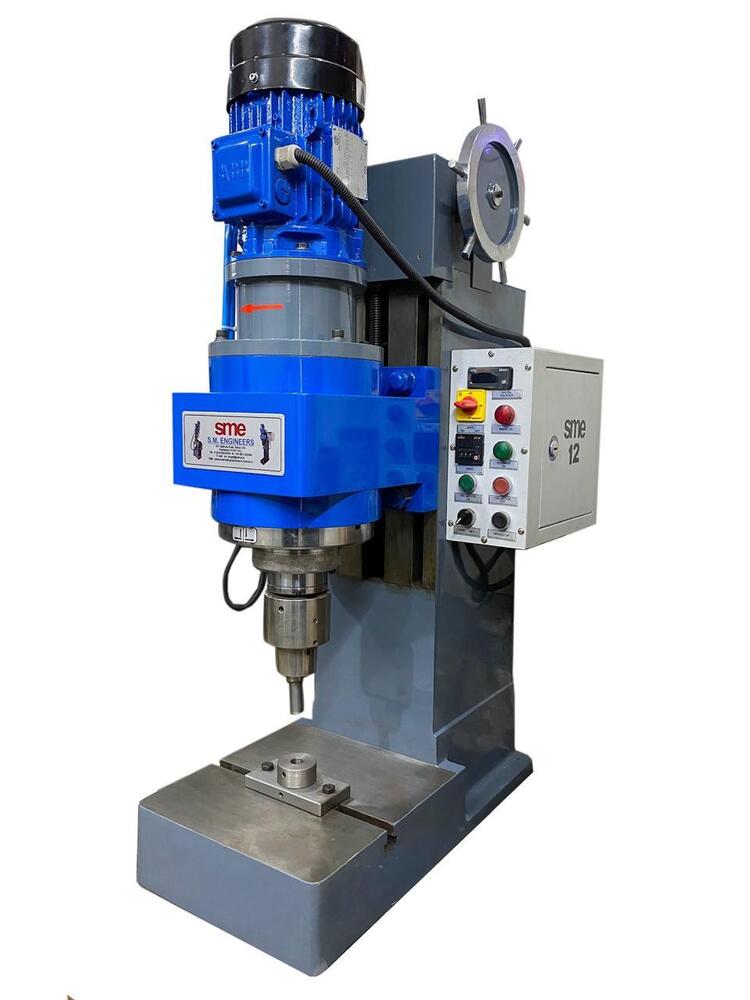

Dual End Riveting Machine is a really versatile technology to enhance the productivity as well as efficiency of your process. It performs thorough riveting on both ends of the rivet pin, and gives desired output. It saves on both time and money, reducing efforts of the workers. The typical jobs for this machine are conveyor pin rivet, watch strap rivet, door hinge pin riveting, and many other. Our dual head riveting machine is engineered for dependable performance, accuracy and repeatable results. It is also great in terms of stroke, power, speed and consistency. Apart from improving the productivity it helps in maintaining the quality of riveting, and other jobs.
Advantages: - Smooth, consistent results
- Cost-effective through less power consumption and reduced efforts
- Compact, rugged and safe construction
- Easy to operate and maintain, easy quick changeover
Product Details:
Minimum Order Quantity | 01 Unit |
Size (meter) | Up to 6 mm |
material | MS |
Brand | SME |
Additional Information:
- Item Code: RIVBE-6
- Pay Mode Terms: T/T (Bank Transfer)
- Port of Dispatch: Faridabad
- Production Capacity: 5000 to 10000
- Delivery Time: 2 to 3 weeks
- Packaging Details: Wooden Box
Technical Specifications:
Model No. | RIV-BE6 | RIV-BE8 | RIVBE12H |
Riveting Capacity (MS) Up to | 6mm | 8mm | 12mm |
Throat Depth | 125mm | 140mm | 150mm |
Shut Height (max) | 200mm | 300mm | 400mm |
Stroke Adjustment | 35mm | 40mm | 45mm |
Cycle time adjustment | 0-9.99 secs | 0-9.99 secs | 0-9.99 secs |
Base Area (Working) | 300x1250 | 300x1350 | 300x1450 |
Motor (H.P) 3Ph. 415V-1440 RPM | 1.0+1.0 | 1.5+1.5 | 1.5+1.5+2.0 |
Air Pressure | 5-6 Kg/cm2 | 5-6 Kg/cm2 | 20-30 Kg/cm2 HYD. PR |
