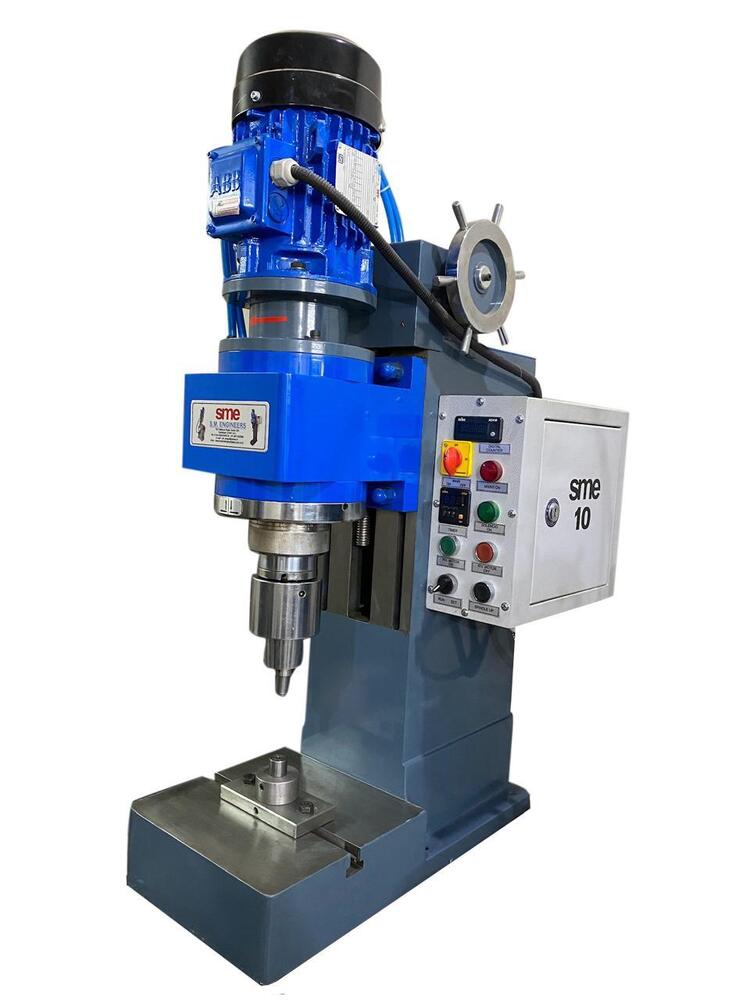

Our Automatic Riveting Machine is really cost-effective and fast-cycling machine. It offers effective rivet setting techniques, and helps you set many rivets to increase the production while saving time. Our riveting machine meets a broad range of fastening applications in different industries. Also, we keep up with rugged models that are strong, durable and reliable. They have a good application scope, covering automobile accessories, construction hardware, and more. Our machines are great in terms of functional performance, efficiency and adjustable riveting.i
i
Technical Specifications
Model No. |
Riveting Capacity (MS)up to |
Throat Depth |
Shut Height (max) |
Stroke Adjustment |
Axial Force |
Cycle time Adjustment |
Base Area (Working) |
Machine Size |
Motor (H.P) 3Ph.415V-1400 RPM |
Air Pressure |
RIV125/6 |
6mm |
125mm |
175 |
40mm |
500 kgs |
0-9.99 secs |
250x250 |
250x500x1050 |
0.5 |
5-6 kg/cm2 |
