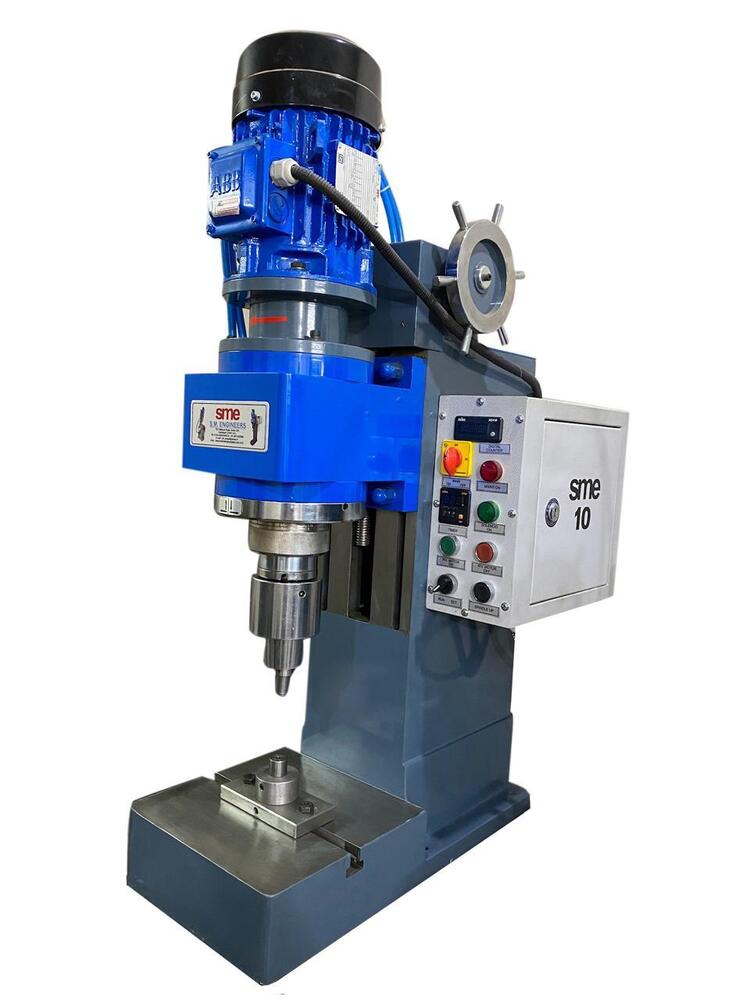

To meet the variegated requirements of our clients, we are betrothed in manufacturing, exporting and supplying Automatic Riveting Machine to our clients. For joining various materials, the offered machine is extensively demanded in industries. This machine is manufactured by our diligent professionals using pristine quality components with the aid of sophisticated techniques. Furthermore, the offered Automatic Riveting Machine can be availed from us in different technical specifications at industry leading rates.
Features:
Industrial Machinery & Parts
We are reckoned as one of the prominent companies, specialized in manufacturing and supplying a qualitative range of Pneumatic Orbital Riveting Machine. Designed after extensive research, these are efficient in delivering cold forming process by offering orbital forming functions that are required for moulding metallic substance into a regular shape. In addition, these can also be used with crown, head swage, flare or projection, assembly, fastening and others, without interruptions from the component material grain structure.
Specifications:
Model No. |
Riveting Capacity |
Column To Rivet Centre |
Spindle Height Adjst. |
Stroke Adjst. |
Cycle Time Adjst |
Base Area |
Axial Force Max. |
Air Pressure |
RIV-100 |
up to 4 Mm |
125 mm |
150 mm |
35 Mm |
0-9.99Sec. |
250x500 |
300 Kg. |
5-6 Kg./CM2 |
Technical Specifications
Model No. |
Riveting Capacity (MS)up to |
Throat Depth |
Shut Height (max) |
Stroke Adjustment |
Axial Force |
Cycle time Adjustment |
Base Area (Working) |
Machine Size |
Motor (H.P) 3Ph.415V-1400 RPM |
Air Pressure |
RIV125/6 |
6mm |
125mm |
175 |
35mm |
500 kgs |
0-9.99 secs |
250x250 |
250x500x950 |
0.50/0.75 |
5-6 kg/cm2 |
